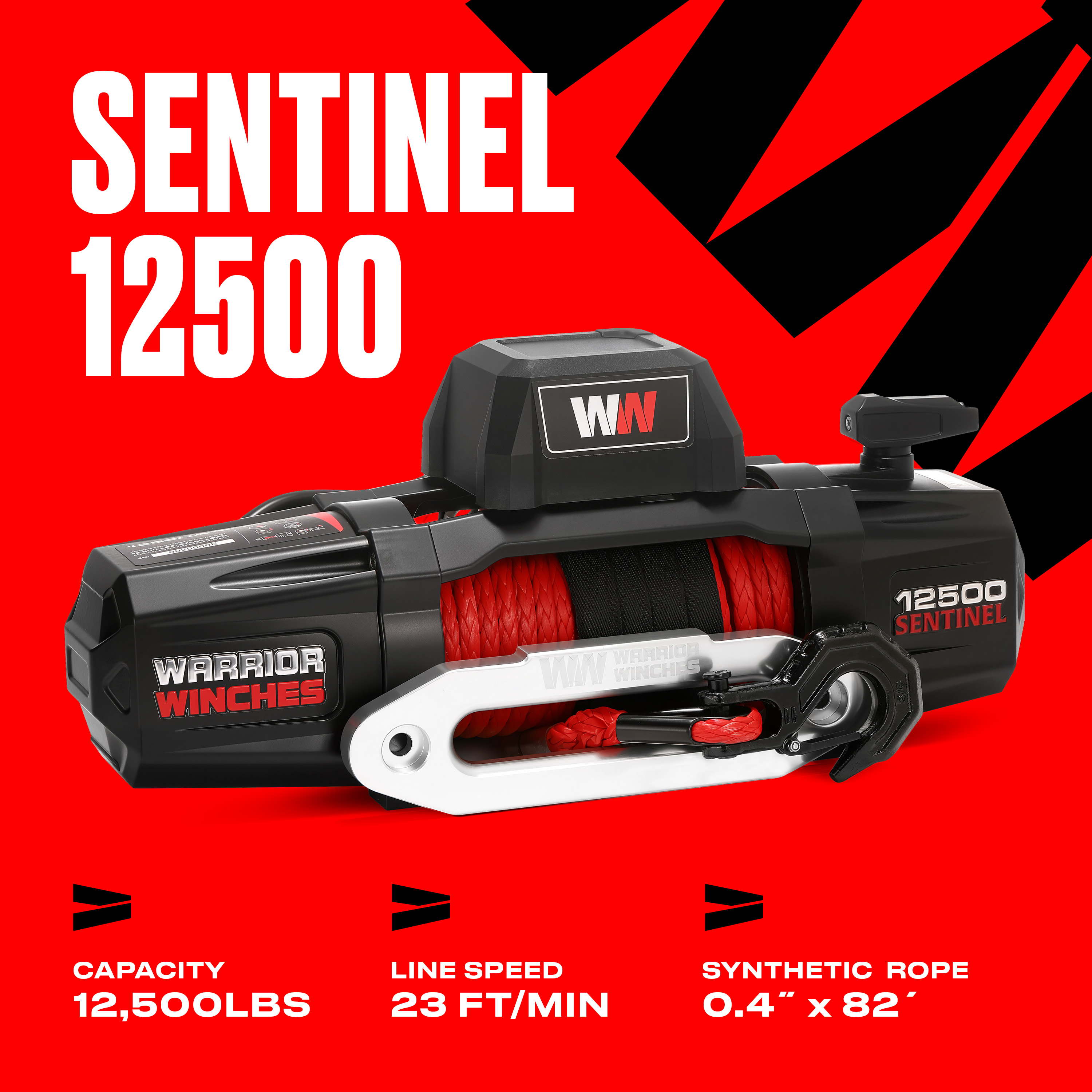

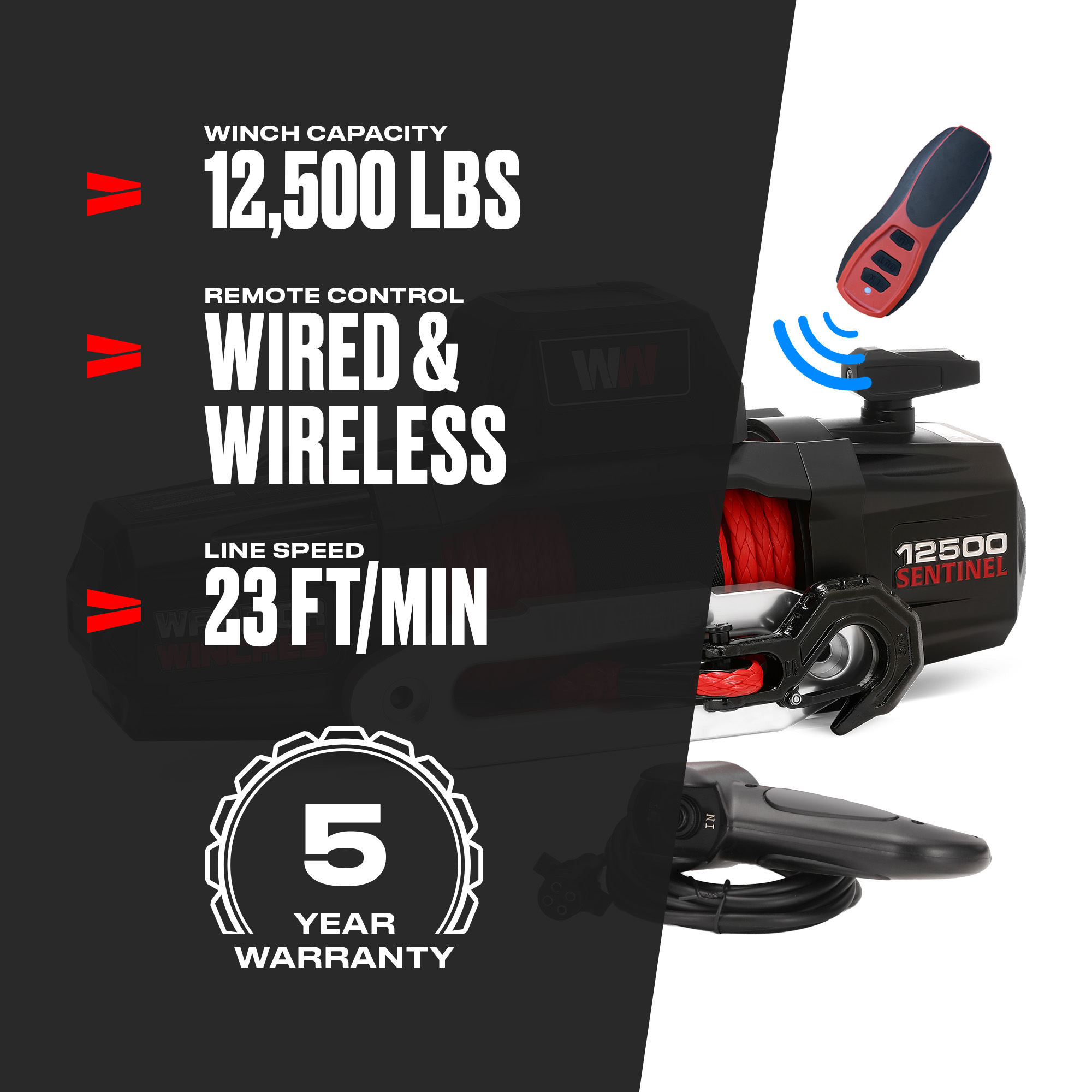

125SNA12-CAD Warrior Sentinel Capacity: 12,500 lb Product Form: Winch Series: Sentinel Cable Material: Synthetic

Sentinel 12,500lb Electric Winch - 12v Synthetic Rope

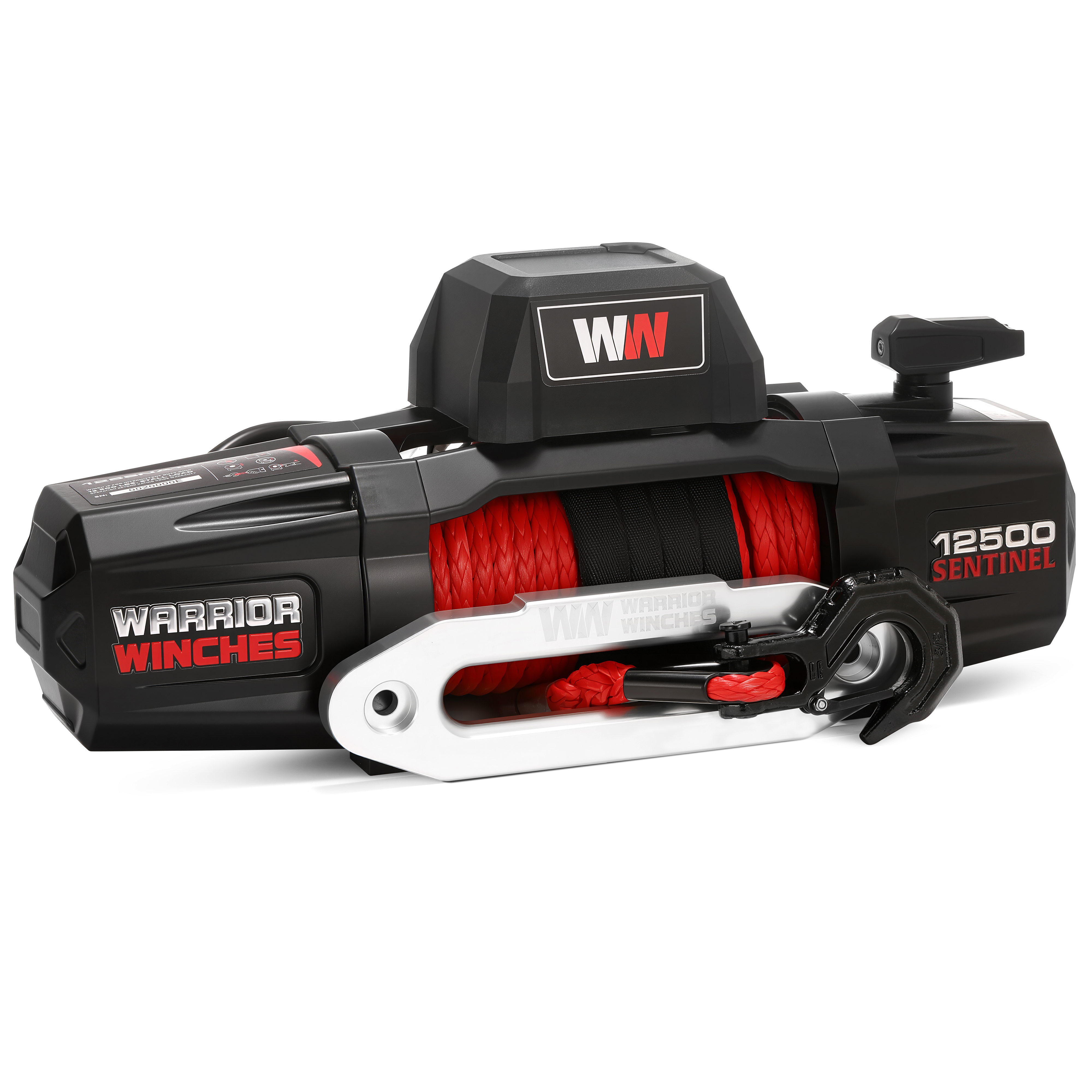

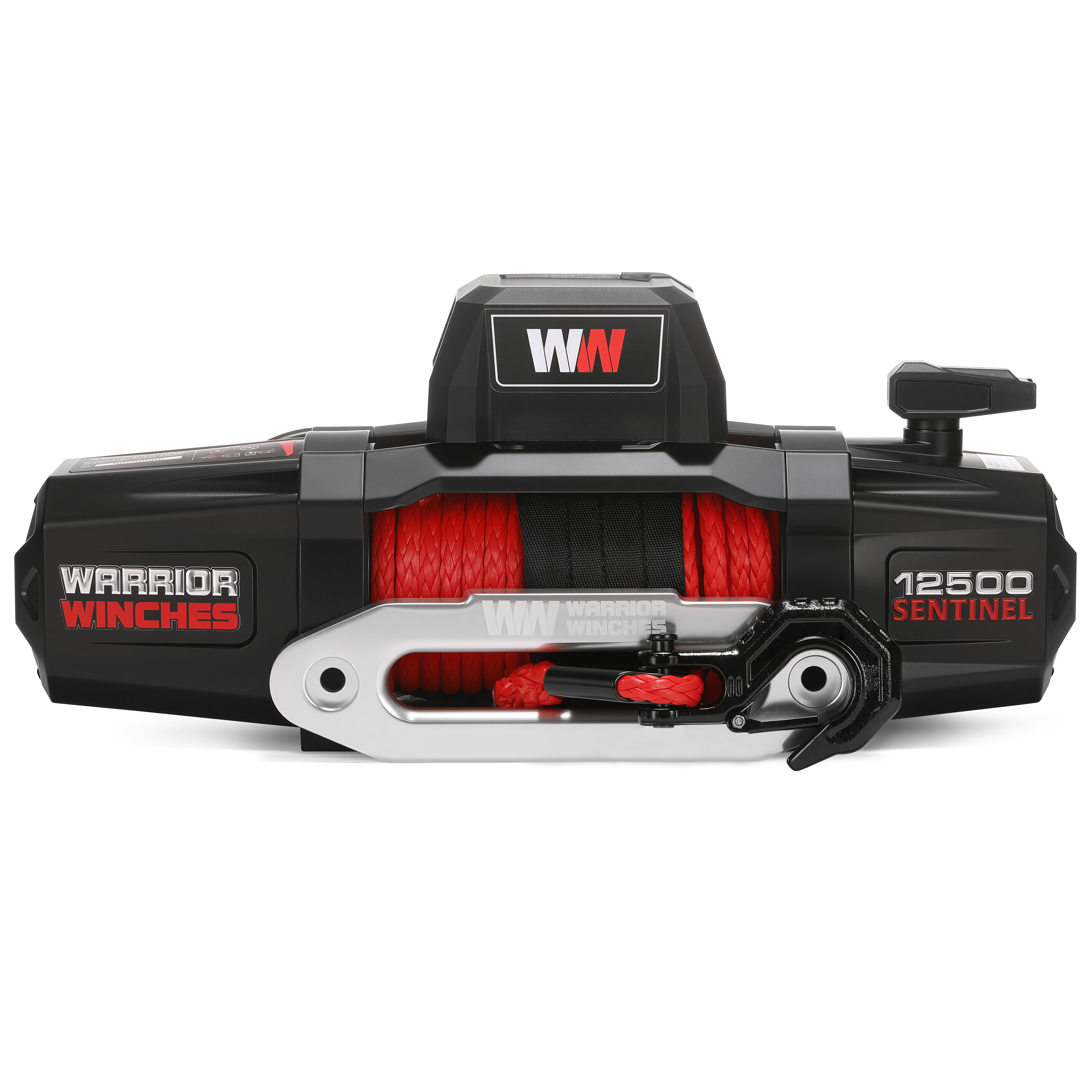

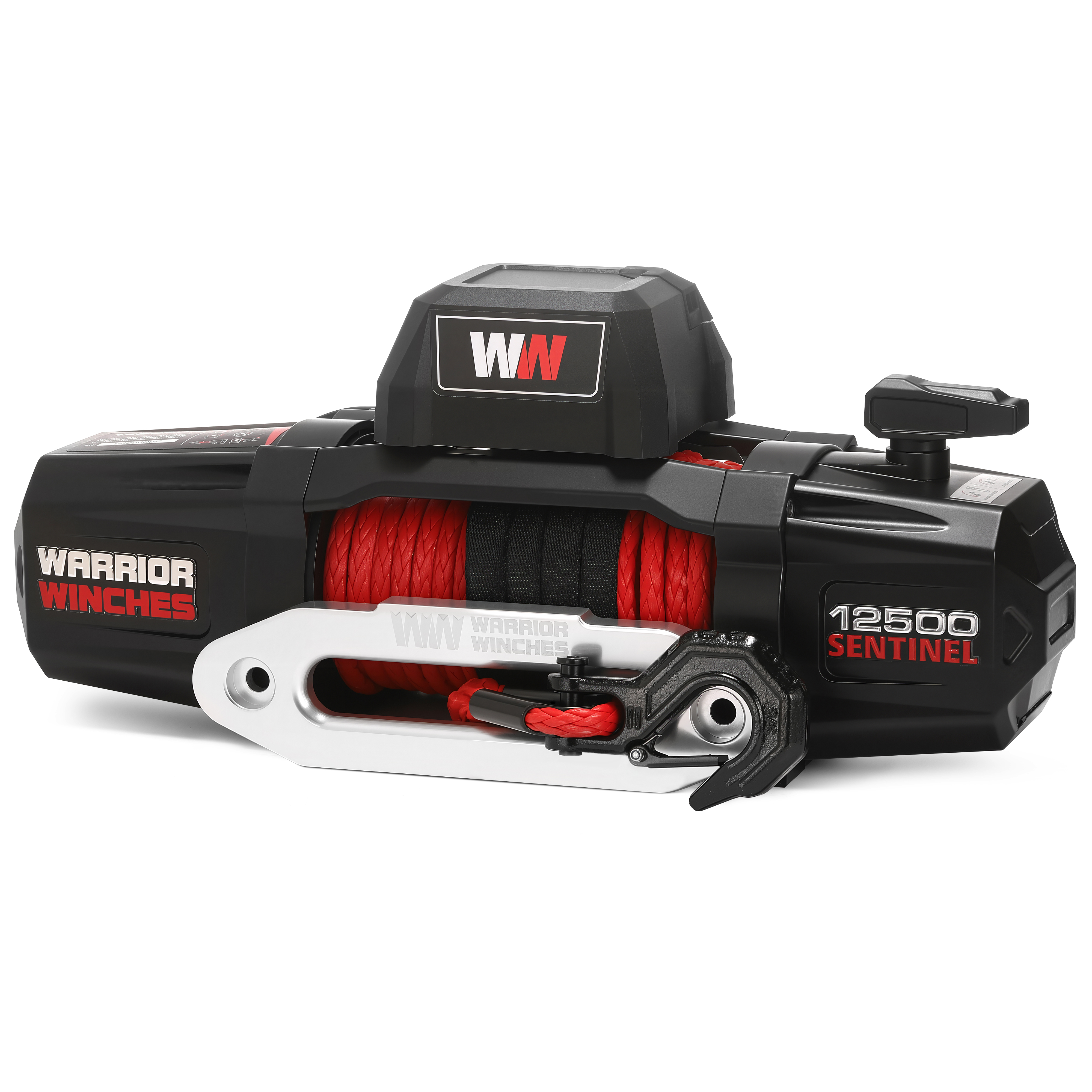

Sentinel Series 12v electric winch rated to 12,500 lb with synthetic rope.

Sales Notes

A 12,500 lb Sentinel Series 12v electric winch with synthetic rope, tough-condition protection, and reliable pulling performance.

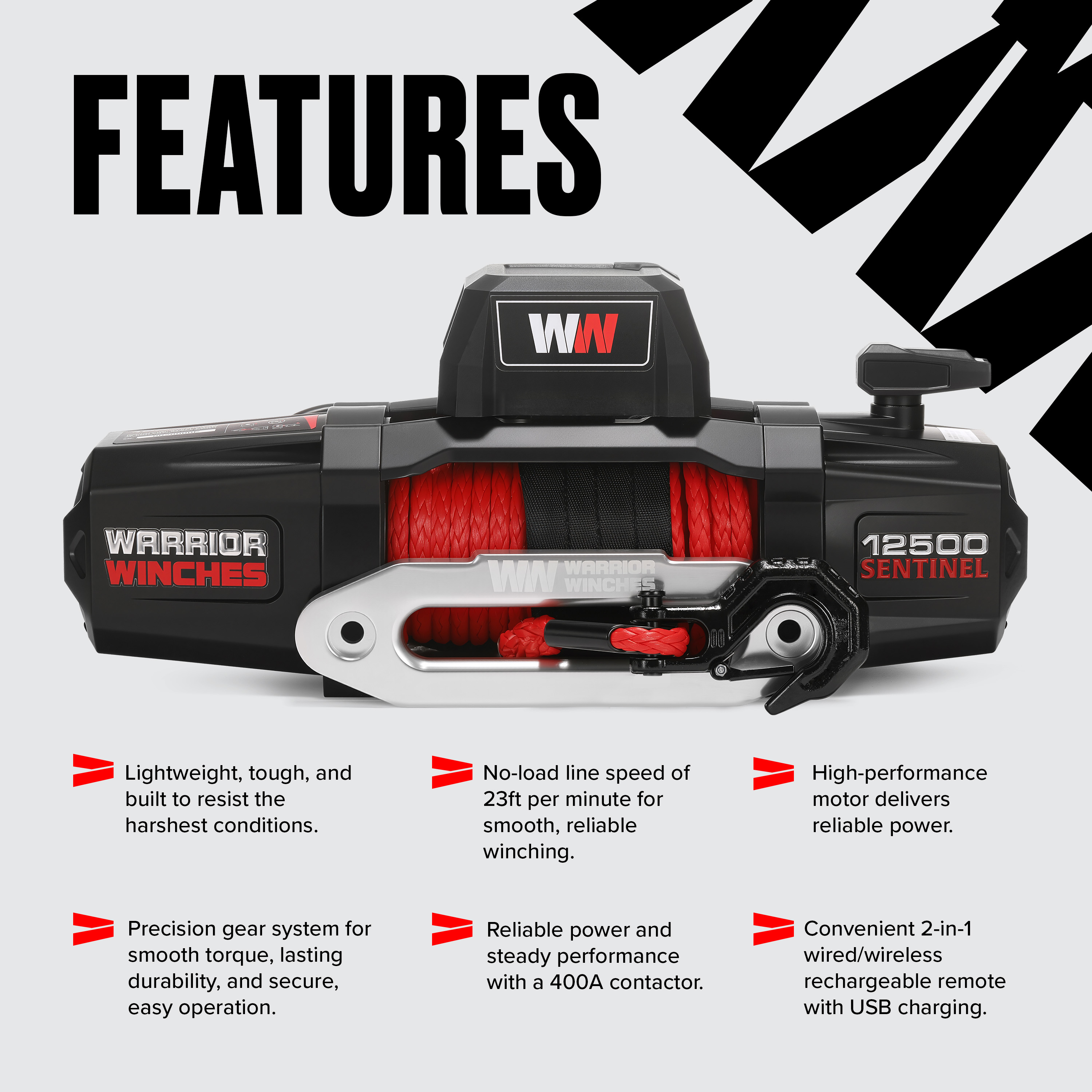

Key Features

Built for Tough Conditions

Designed for serious recovery performance in demanding off-road, worksite, marine, and coastal environments.

Mechanical Spring Brake

Mechanical spring braking supports controlled load handling and dependable winch operation.

IP-Rated Protection

Sentinel range is designed around water, dust, and harsh-environment protection.

3-Stage Planetary Gear System

Planetary gearing delivers strong torque, smooth performance, and consistent pulling power.

5 Year Warranty

Backed by Warrior's Sentinel range warranty coverage.

Product Information

Built for serious performance in tough conditions, the Sentinel Winch delivers the perfect balance of strength, speed, and durability. Its lightweight full-metal housing is easy to carry and install, yet tough enough to handle heavy-duty tasks - whether you're off-roading, working on-site, or operating in harsh coastal environments.

Salt spray tested for over 450 hours, the Sentinel resists corrosion in even the most demanding marine and coastal conditions. Under the hood, a high-performance motor pairs with a 400A contactor and heavy-duty 25mm² battery cables to ensure efficient, reliable power when you need it most.

The advanced 3-stage planetary gear system delivers strong torque and smooth performance, all in a compact and durable design. The Sentinels offer consistent pulling power without compromising energy efficiency.

Built to withstand the elements, the winch features an IP68-rated body and an IP67-rated control box for complete protection against water, dust, and dirt. Choose between a rugged steel rope or Armortek™ synthetic rope, both designed for long-lasting, high-performance use in extreme conditions.

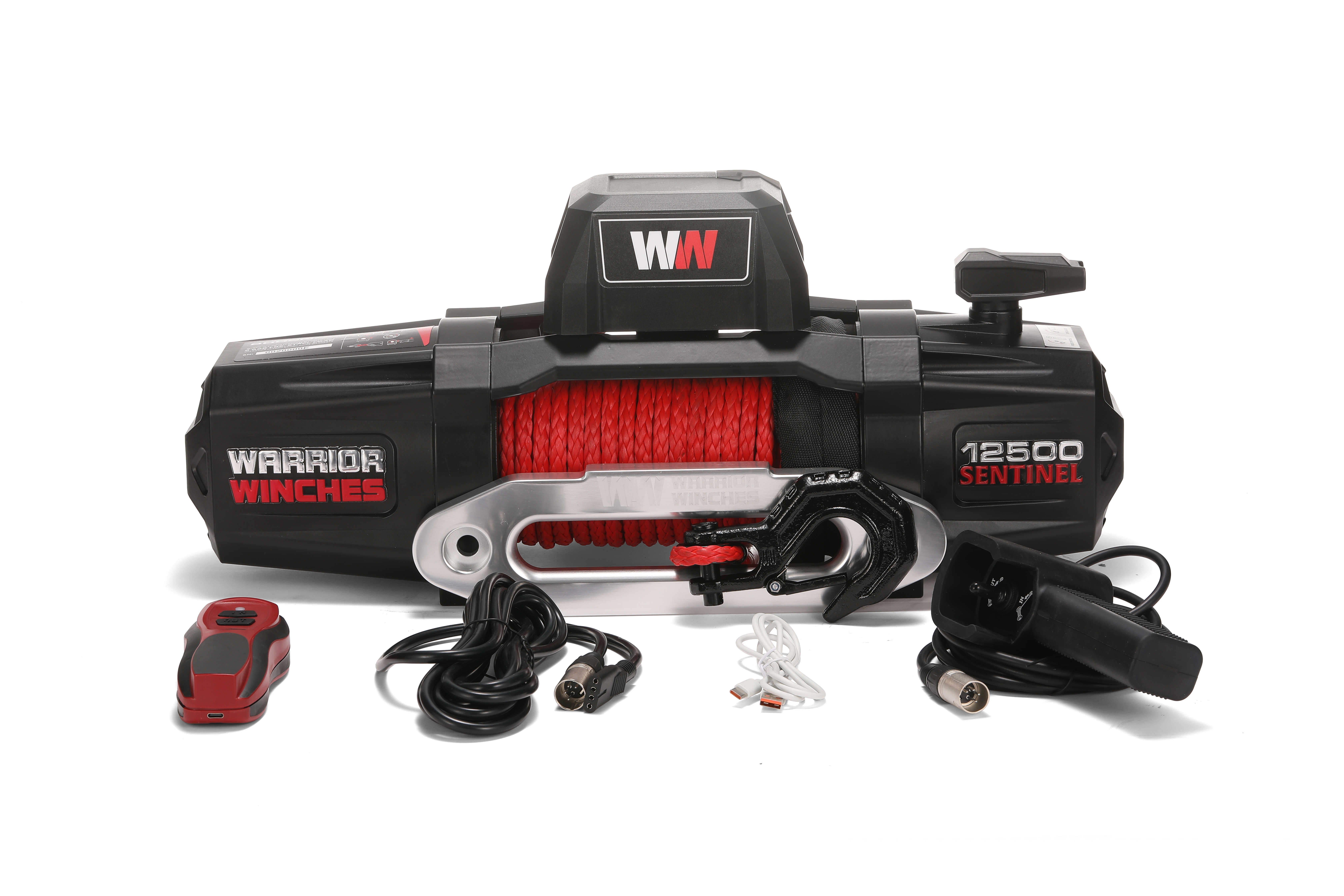

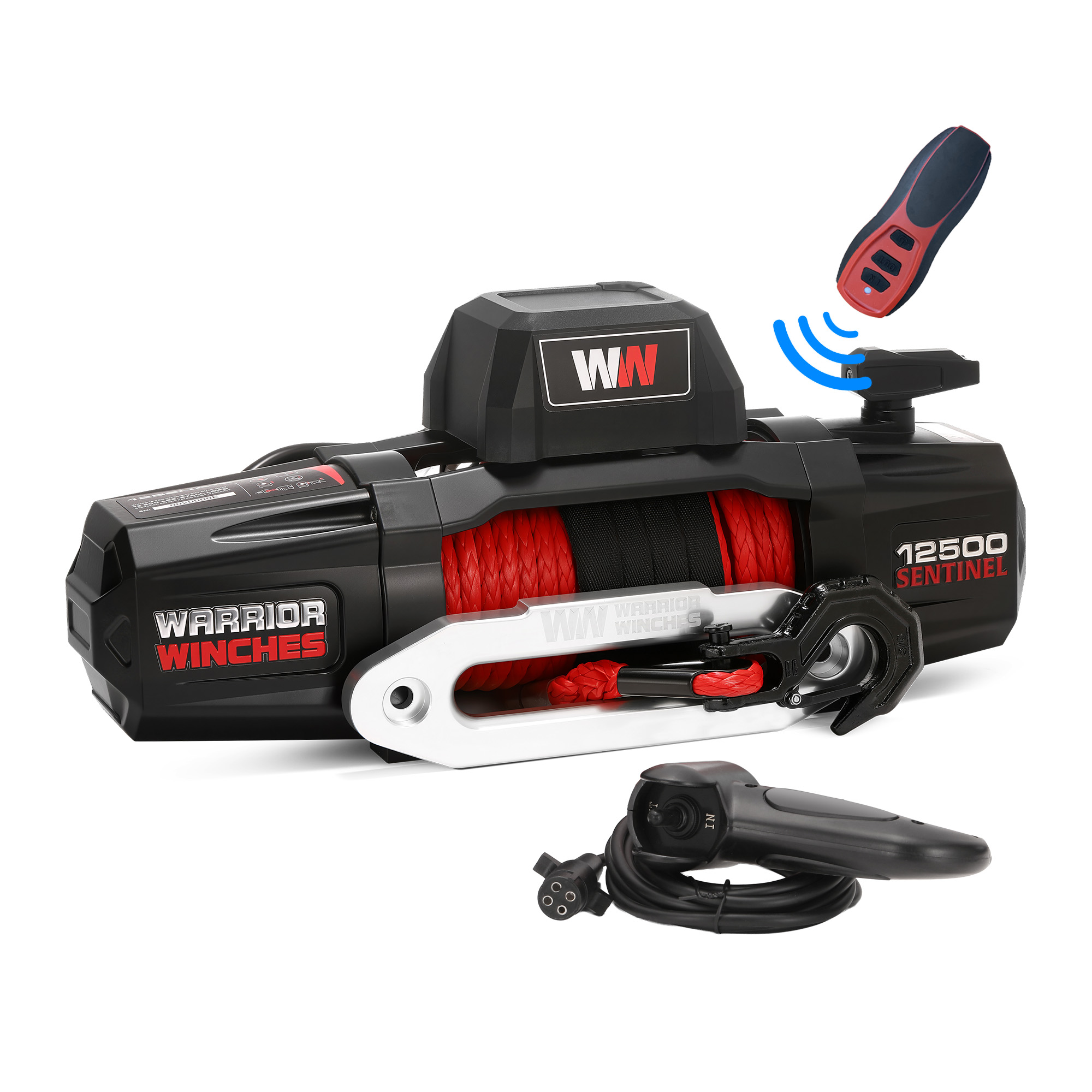

Operation is simple and flexible thanks to the included 2-in-1 remote, which functions both wired and wirelessly, and recharges easily via USB. Backed by a 5-year warranty, the Sentinel Winch is made to perform - and built to last.

Wherever the job takes you, the Sentinel is always ready.

Specifications

Warranty 5.0
Source Product URL https://www.warriorwinches.com/products/sentinel-12500-electric-winch-12v-synthetic-rope
Braking Action Mechanical Spring
Clutch Manual
Gearing 234:1
Motor Type 12V: Input: 5.0kw/6.7hp; Output: 2.4kw/3.2hp
Mounting Pattern 10 x 4.5 in (4-M10)
Rated Line Pull 12500.0
Rated Volt 12

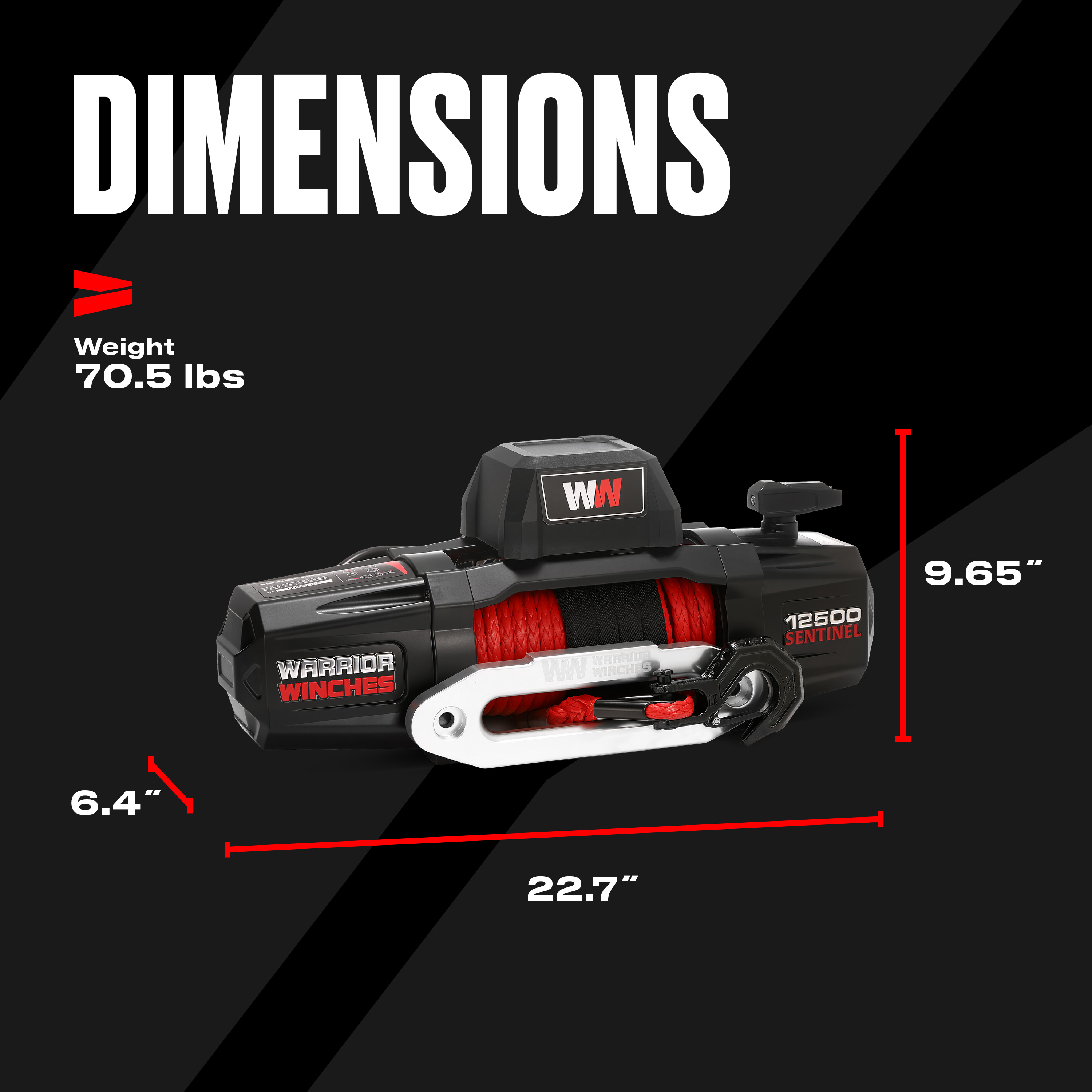

Shipping Width34.00 cm / 13.39 in
Shipping Length65.50 cm / 25.79 in
Shipping Height33.50 cm / 13.19 in
Shipping Weight32000.00 g / 70.55 lb
